1. Factory Introduction.
Light Country was founded in 1985, headquater located in Taiwan.
We have been dedicating on switch, our main products are thermostat, rocker switch, push button switch, water-proof switch, photoelectric switch, slide switch and rolling-ball vibration switch. These parts are widely used in household appliance, electrical products, office equipment, industrial facilities, medical devices and so on. They could be customized designed based on end-customer's demand.
To provide customer best service, we’re with integration of R&D, production, sales and post-sales as well. We've got ISO9001, ISO14001, CQC, UL/CUL, VDE, TUV, SEMKO, NEMKO certificate, comply with ROHS/REACH regulations.
We promise reasonable price, stable quality, timely delivery and superior service.
2. R3 ON-OFF Rocker Switch Specification.
| Factory | Light Country(Changshu)Co.,Ltd |
| Electrical rating | 20A 250V AC/125V AC, 16A 250V AC/125V AC |
| Product Size | 24*21mm |
| Installation Hole Size | 21.8*18.6mm |
| Mechanical life endurance | >30,000 cycles |
| Electrical life endurance | >10,000 cycles |
| Housing Color | Black(More options available, please contact us.) |
| Housing Material | PA66 |
| Rocker Color | Black/Red(More options available, please contact us.) |
| Rocker Material | PA66/PC |
| Contacts | Silver alloy |
| Terminals | Brass with silver plated |
| Contact resistance | <20mΩ |
| Insulation resistance | ＞1000MΩ(500DC between open contacts) |
| Ambient temperature | T105/55 |
| Ambient humidity | Max.85% |
| Actuating force | 3~8N(depend on different switch functions) |
| Flammability | UL 94V-2, UL 94V-0, glow-wire, needle flame test |
| Solder ability of terminal | Max 350℃, 3S (no pressure can be placed on terminals when soldering by hand.) |
3. R3 Rocker Switch Function Options.
| Item | Function |
| 1 | ON-OFF |
| 2 | ON-ON |
| 3 | ON-OFF-ON |
| 4 | ON-(ON) |
| 5 | OFF-(ON) |
| 6 | (ON)-OFF-(ON) |
| 7 | ON-(OFF) |
| 8 | ON-OFF-(ON) |
| 9 | ON-OFF(With Lamp) |

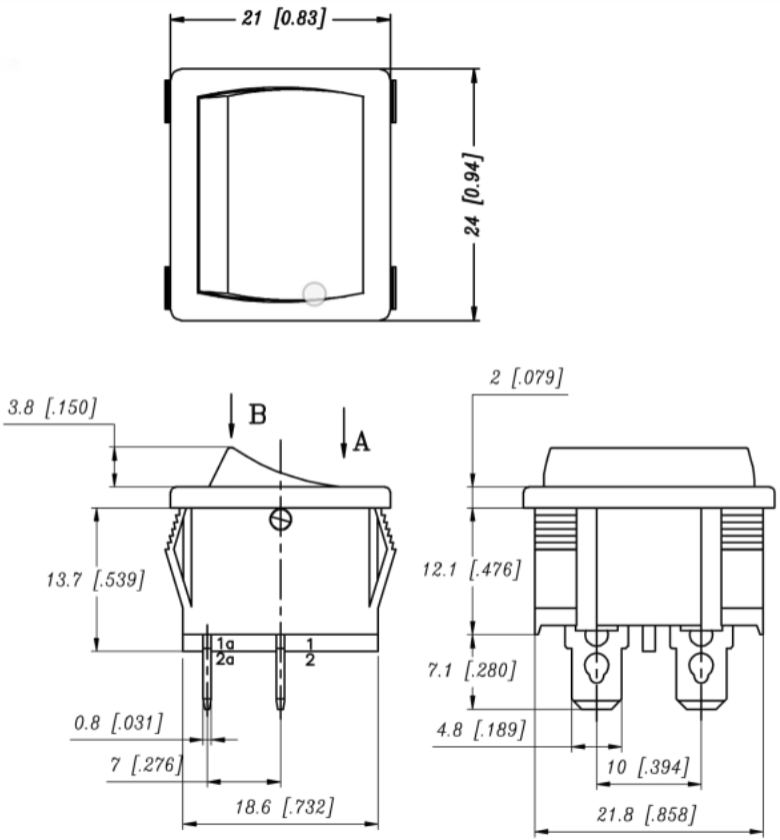

4. R3 Rocker Switch Dimension.
5. If the picture R3 Rocker Switches could not meet your demand, please turn to below "Rocker Switch specification" for more models.
